Technical Data
| Electrical Specifications | |
|---|---|
| Type No. | 96520058 |
| Rx Characteristics | |
| Frequency range | 880-915 |
| Gain | 12dB±1dB |
| Gain Fluctuation |
0.6dB typ 1.5dB max |
| Noise figure @25℃ | 1.5dB typ. |
| Return loss in by-pass mode | 15dB min |
| Return loss in normal mode | 18dB min |
| Max Input Power | <12dBm |
| Output 1–dB compression pint | 12dBm min |
| Insert loss in by pass mode @25℃ | 2.8dB typ |
| Tx Characteristics | |
| Frequency range | 925-960 |
| Insert loss @25℃ | ≤0.4 |
| Insert loss @(-40-+65℃) |
≤0.40. ≤0.8dB typ.,0.9dB max |
| Return loss | ≥18 |
| Peak power | ≤200 |
| Intermodulation products in RX band | <-117dBm (2 Tx carriers at +43 dBm) (Power up) @BTS IM3 |
| Mechanical Specifications | |
|

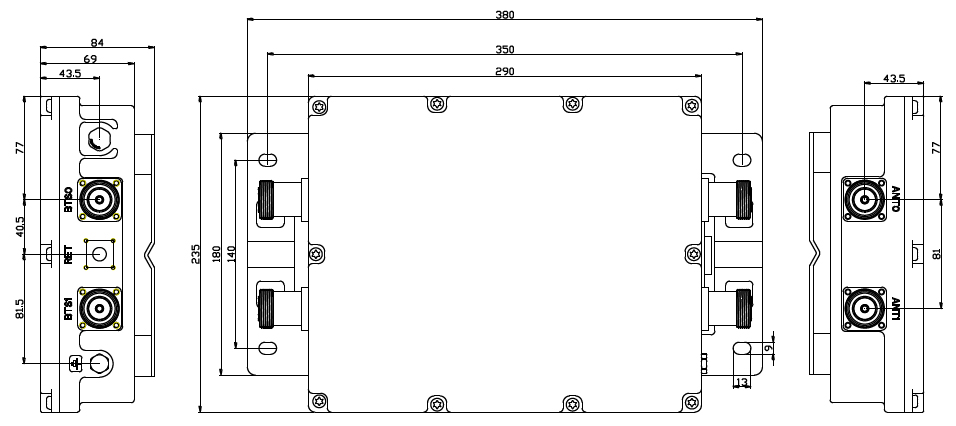

Dimensions, HxWxD (excluding connectors and mounting bracket) (mm) |
235x290x76 |
| Weight (including connectors and mounting bracket) (kg) | 5.6 |
| Packing Size(mm) | 440x285x134(4Pcs/box) |
| Connector Type | 4.3-10 Female |
| Color | Light Gray |
| Mounting | Wall mounting: with 4 screws (max. 8 mm diameter), Mast mounting: with additional clamp set |
| Material | Aluminium housing |
| Environmental Specifications | |
| Operational Temperature (°C) | -40~+60 |
| Operational Humidity (%) | ≤95 |
| Ingress Protection Class | IP67(Indoor and Outdoor) |
| MTBF | > 1,000,000 hours (per TMA) |
| EMC | According to ETS 300 342-3 |
| DC and Alarm Characteristics | AISG mode |
| Lightning Protection | 3kA; 10/350 μs pulse |
