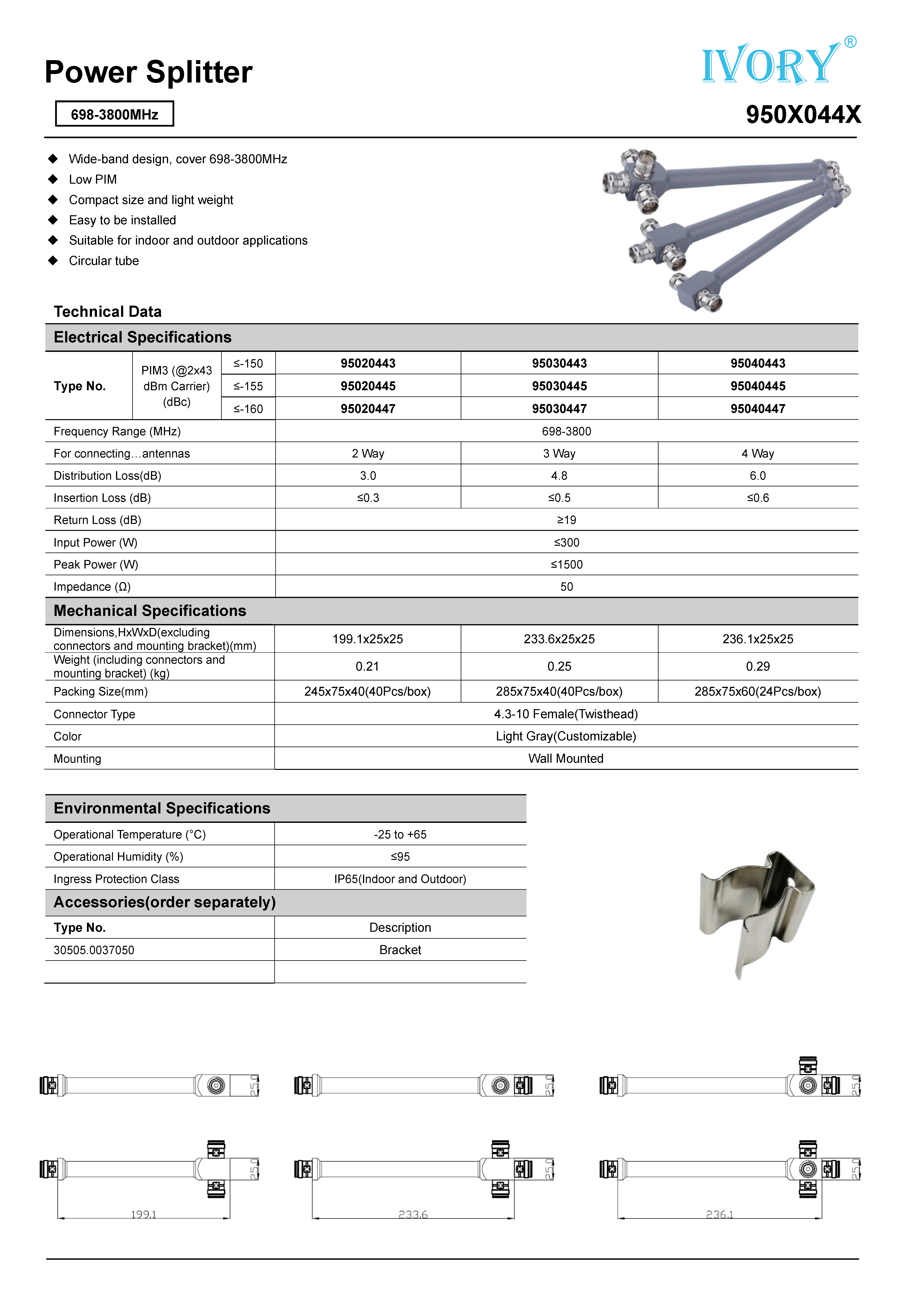

Technical Data
| Electrical Specifications | |||||||
|---|---|---|---|---|---|---|---|
|
Type No. |
PIM3 (@2×43 dBm Carrier) (dBc) |
≤-150 | 95020443 | 95030443 | 95040443 | ||
| ≤-155 | 95020445 | 95030445 | 95040445 | ||||
| ≤-160 | 95020447 | 95030447 | 95040447 | ||||
| Frequency Range (MHz) | 698-3800 | ||||||
| For connecting…antennas | 2 Way | 3 Way | 4 Way | ||||
| Distribution Loss(dB) | 3.0 | 4.8 | 6.0 | ||||
| Insertion Loss (dB) | ≤0.3 | ≤0.5 | ≤0.6 | ||||
| Return Loss (dB) | ≥19 | ||||||
| Input Power (W) | ≤300 | ||||||
| Peak Power (W) | ≤1500 | ||||||
| Impedance (Ω) | 50 | ||||||
| Mechanical Specifications | |||||||

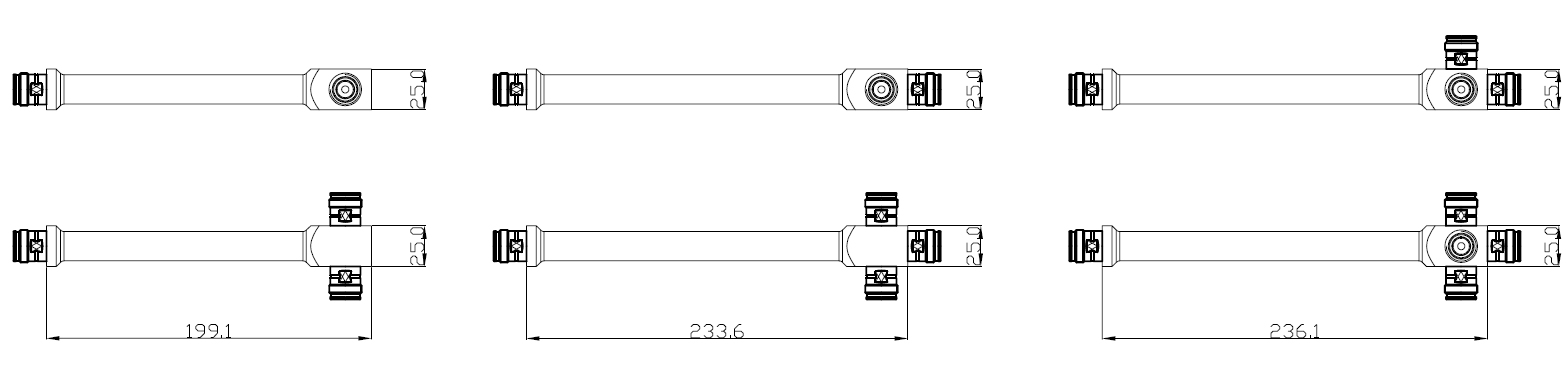

| Dimensions,HxWxD(excluding connectors and mounting bracket)(mm) | 199.1x25x25 | 233.6x25x25 | 236.1x25x25 | ||||
|
Weight (including connectors and mounting bracket) (kg) |
0.21 | 0.25 | 0.29 | ||||
| Packing Size(mm) | 245x75x40(40Pcs/box) | 285x75x40(40Pcs/box) | 285x75x60(24Pcs/box) | ||||
| Connector Type | 4.3-10 Female(Twisthead) | ||||||
| Color | Light Gray(Customizable) | ||||||
| Mounting | Wall Mounted | ||||||
| Environmental Specifications | |||||||
| Operational Temperature (°C) | -25 to +65 | ||||||
| Operational Humidity (%) | ≤95 | ||||||
| Ingress Protection Class | IP65(Indoor and Outdoor) | ||||||
| Accessories(order separately) | |||||||
| Type No. | Description | ||||||
| 30505.0037050 | Bracket | ||||||
