Technical Data
| Electrical Specifications | |||||
|---|---|---|---|---|---|
| Type No. |
PIM3 (@2×43 dBm Carrier) (dBc) |
≤-150 | 95322263 | 95322283 | 95322303 |
| ≤-155 | 95322265 | 95322285 | 95322305 | ||
| ≤-160 | 95322267 | 95322287 | 95322307 | ||
| Frequency Range (MHz) | 698-3800 | ||||
| Insertion Loss (dB) | 3±0.5 | ||||
| Isolation (dB) | > 25 | ||||
| VSWR (dB) | < 1.25 | ||||
| Input Power (W) | <300 | <300 | <500 | ||
| Peak Power (W) | <800 | <1500 | <2000 | ||
| Impedance (Ω) | 50 | ||||

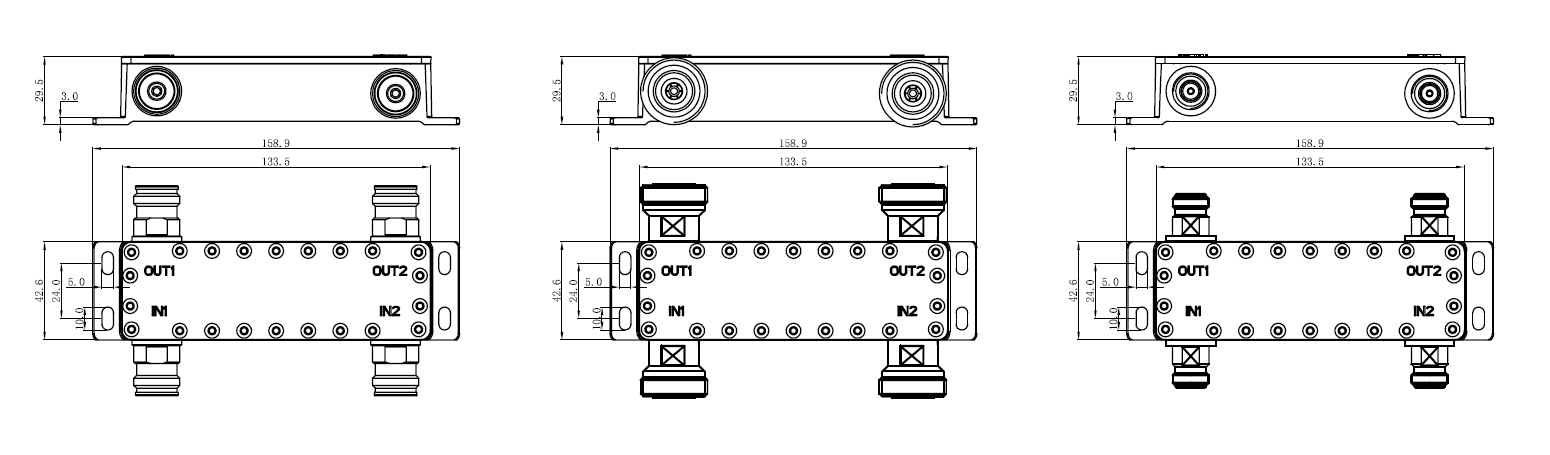

| Mechanical Specifications | |||||
| Dimensions,HxWxD(excluding connectors and mounting bracket)(mm) | 158.9x42x29.5 | ||||
| Weight (including connectors and mounting bracket) (kg) | 0.48 | 0.5 | 0.7 | ||
| Connector Type | N Female | 4.3-10 Female | 7-16 Female | ||
| Packing Size(mm) | 215x140x95(12Pcs/box) | ||||
| Color | Light Gray(Customizable) | ||||
| Mounting | Wall Mounted | ||||
| Environmental Specifications | |||||
| Operational Temperature (°C) | -40 to +65 | ||||
| Operational Humidity (%) | ≤95 | ||||
| Ingress Protection Class | IP65(Indoor and Outdoor) | ||||
| Accessories(order separately) | |||||
| Type No. | Description | ||||
