Technical Data
| Electrical Specifications | |
|---|---|
| Type No. | 96321400 |
| Frequency Range (MHz) | 3700-4200 |
| Insertion Loss (dB) | ≤0.5(including connectors) |
| Ripple(dB) | ≤0.2 |
| Group Delay(ns) | ≤8 |
| Rejection (dB) |
≥63 min@3.4-3.5 GHz ≥65 min@3.5-3.6GHz ≥60 min@5.8-6.5GHz |
| Return Loss (dB) | ≥18 |
| PIM3 (@2×43 dBm Carrier) (dBc) | / |
| Input Power (W) | <100 |
| Peak Power (W) | <400 |
| Impedance (Ω) | 50 |
| Mechanical Specifications | |

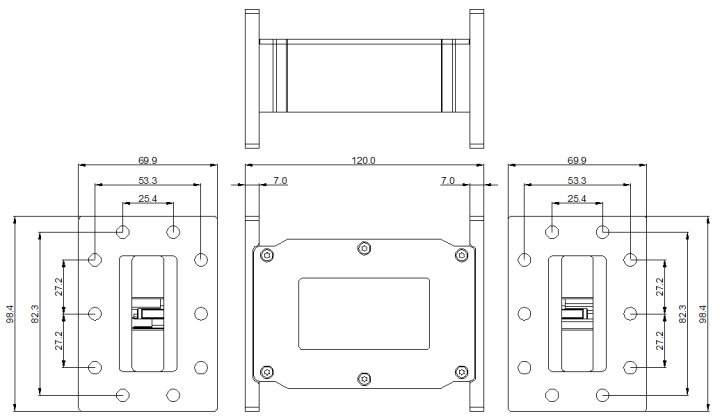

| Dimensions,HxWxD(excluding connectors and mounting bracket)(mm) | 120×69.9×98.4 |
| Weight (including connectors and mounting bracket) (kg) | 0.62 |
| Packing Size(mm) | 374x130x159(16Pcs/box) |
| Connector Type |
CPR-229G(input) CPR-229F(output) |
| Color | Apple White |
| Mounting | Pole (clamps included for Ф35-125mm pole) or Wall Mounted |
| Environmental Specifications | |
| Operational Temperature (°C) | -40 to +65 |
| Operational Humidity (%) | ≤95 |
| Ingress Protection Class | IP66(Indoor and Outdoor) |
| Accessories(order separately) | |
